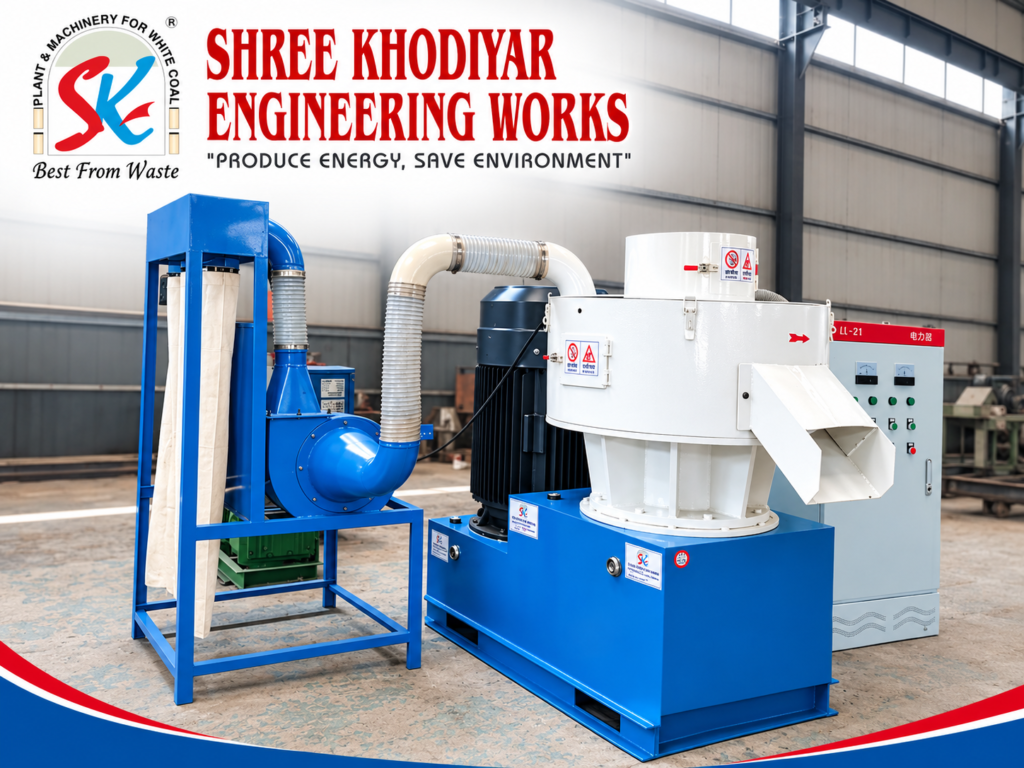

Small Biomass Pellet Machine — Model SK-PL450

Biomass-Pellet-Plant-6-8mm

A compact biomass pelleting unit suited for smaller-scale operations. The system is paired with a dedicated hammer mill for raw material size reduction and is designed for straightforward installation with a smaller land footprint than the large plant.

Manufacturer

Shree Khodiyar Engineering Works, Rajkot, Gujarat, India

Included Equipment

  • Biomass Pellet Mill — Model SK-PL450

Working Mechanism

  • Raw biomass (powder form) is first processed through the hammer mill, which uses a cyclone with rotary air valve and an input conveyor with motor and gearbox to regulate feed.
  • The sized material is then compacted into cylindrical pellets by the SK-PL450 pellet mill and discharged for cooling and collection.
  • A fully functional electrical panel board controls and monitors the system.

Production Capacity

Main Motor Output

800 – 1,000 Kg/hr

General Specifications

Feeding Raw Material Size

Less than 6 mm

Raw Material Form

Powder form (max.)

Permissible Moisture

10 – 15% (max.)

Pellet Diameter

8 mm & 10 mm (cylindrical, dependent on pellet die)

Pellet Length

20 mm to 50 mm

Land Area Required (Machine Room)

20′ x 30′ x 12′ (W x L x H)

Electrical Power Requirement — Overall Plant

Power Connection Required (3-phase)

75 HP

Approx. Electrical Load

90 – 100 Amp

Power Consumption (per MT)

35 – 40 Units

Staff Required

Trained & Skilled Operator

1 per shift

Unskilled Labour

2 per shift

Key Features

  • Compact footprint suited to smaller-scale operations
  • Fully functional electrical panel board included
  • Robust design built for continuous industrial operation
  • Professional commissioning and after-sales technical support

About the Manufacturer

Shree Khodiyar Engineering Works is based in Rajkot, Gujarat, and specializes in biomass briquetting and pelletizing technology, helping industries and farmers convert agricultural and biomass waste into renewable fuel.

  • In-house manufacturing — machines are designed, fabricated and trial-run at the company’s own Rajkot works
  • Raw material trials conducted on the customer’s own material prior to dispatch
  • Operator training provided at the time of commissioning
  • Ready stock of dies, rollers and other wear parts
  • Guidance on plant layout, raw material handling and end-to-end setup
